1、优质碳素钢箱体,隐藏式提手,体积小,重量轻,节省运输成本,有效减轻劳动强度;
2、左右箱体之间可采用隐藏式边锁连接,安装及拆卸快速方便;

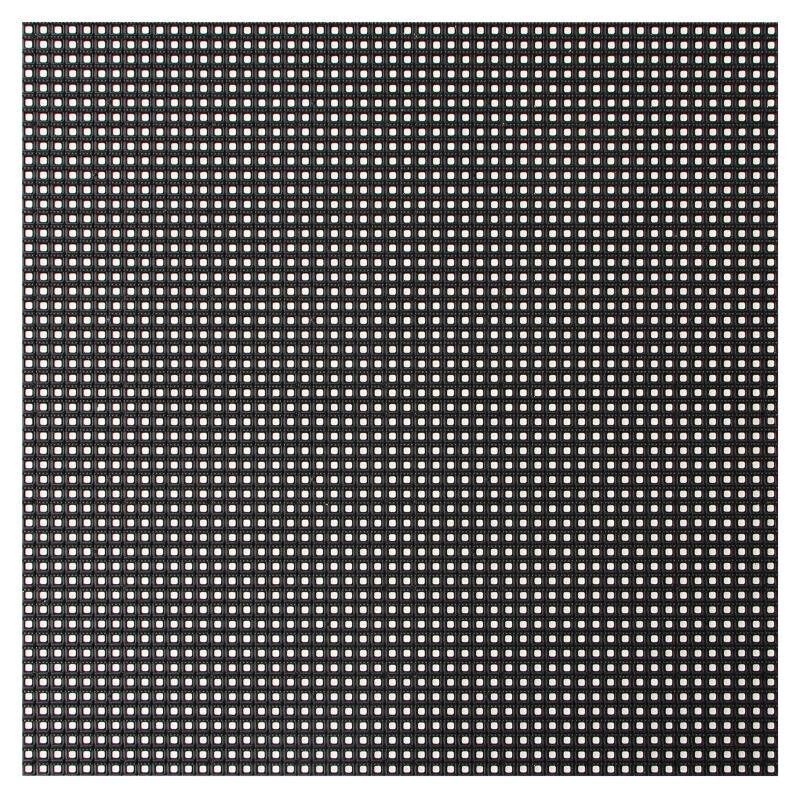

3、高分子柔性面罩,表面无眩光,对比度更佳,单位像素密度高,采用SMD2727 高亮度高灰度灯珠,播放高清视频效果好;

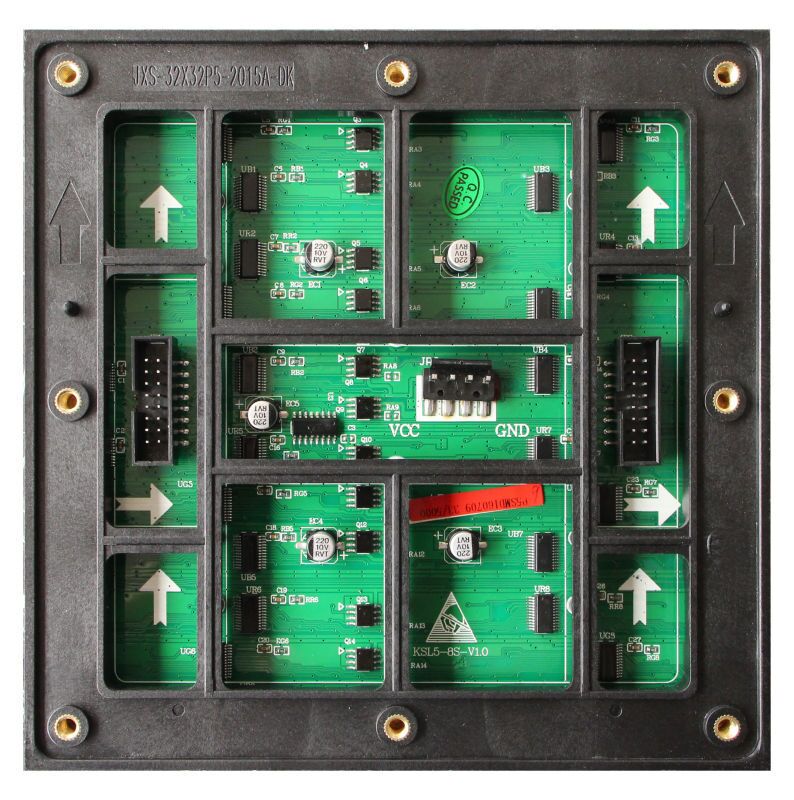

4、模组采用特殊的技术处理,防护等级可达IP65。
参数Parameters
|
值Value
|
单位Unit
|
型号Model
|
VO5
|
|
点间距Pixel pitch
|
5
|
mm
|
封装灯Pixel configuration
|
SMD2727
|
|
点密度Pixel density
|
40000
|
pix/㎡
|
亮度Brightness
|
≥6000
|
nits
|
模组尺寸Module Dimensions (W×H)
|
160*160
|
mm
|
模组像素Module Resolution (W×H)
|
32*32
|
pix
|
模组重量Module Weight
|
0.14
|
kg
|
箱体尺寸Cabinet Dimensions(WxHxD)
|
640*640*120
|
mm
|
箱体材质Cabinet Material
|
Steel
|
箱体重量Cabinet Weight
|
25
|
kg
|
箱体像素Cabinet Resolution
|
128*128
|
pixels
|
刷新率Refresh rate
|
≥1200
|
Hz
|
灰度等级Gray scale per color
|
8192
|
level
|
亮度Brightness
|
6000 nits
|
最佳视角Best Viewing Angle(H/V)
|
170/120
|
deg.
|
防护等级IP rating(Front/Rear)
|
IP65/ IP54
|
|
最大/平均功率MPC/APC
|
720/ 540
|
W/㎡
|
输入电压Input voltage(AC)
|
110~240
|
V
|
运行温度Operating temperature
|
-10 ~40
|
℃
|
运行湿度Operating humidity
|
10%~90%
|
|
视频源Source compatibility(with video processor)
|
AV, S-Video, VGA, DVI, HDMI, SDI, DP
|
最佳视距Besting Distance
|
5-60 M
|
|
