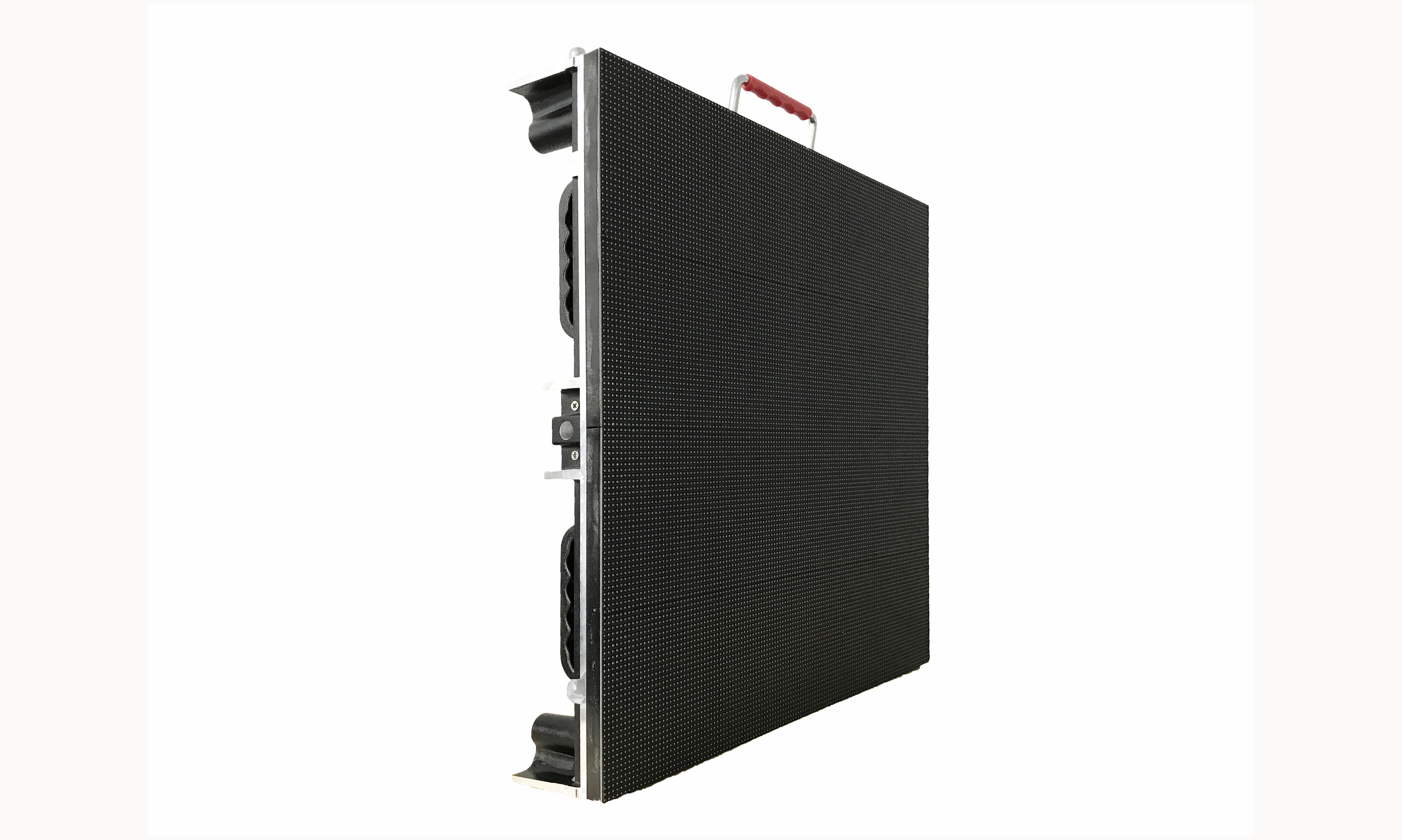

产品名称:R系列 户内租赁屏
产品编号:R391 R481
点间距: 3.91mm 4.81mm
亮度: 1000nits 1200nits
使用环境:户内
箱体尺寸:500x500x85mm
人性化弧形锁设计,高精度,易安装
独特的双RJ45信号接口,省去了信号航插,安装更方便
Vista Indoor&Outdoor Mobile LED Display R Series |
|||||
Model |
R391 |
R481 |
R390 |
R480 |
R590 |
Pitch |
3.91 |
4.81 |
3.91mm |
4.81mm |
5.95 mm |
Brightness |
1000cd/㎡ |
1200cd/㎡ |
4500cd/㎡ |
5000cd/㎡ |
5000cd/㎡ |
LED type |
SMD2020 |
SMD2020 |
SMD1921 |
SMD2525 |
SMD3535 |
Scanning |
16 Scanning |
13 Scanning |
16 Scanning |
13 Scanning |
7 Scanning |
Pixel Density |
65387 dots/㎡ |
43222 dots/㎡ |
65387 dots/㎡ |
43222 dots/㎡ |
28235 dots/㎡ |
Module Size |
250x250mm |
||||
Module Resolution |
64x64 |
52x52 |
64x64 |
52x52 |
42x42 |
Viewing Angle(degree) |
H :160 |
H :160 |
H :160 |
H :160 |
H :140 |
V :140 |
V :140 |
V :140 |
V :140 |
V :140 |
|
IP rating |
IP31 |
IP31 |
IP65 |
IP65 |
IP65 |
MPC |
600W/㎡ |
580W/㎡ |
600W/㎡ |
850W/㎡ |
900W/㎡ |
APC |
200W/㎡ |
195W/㎡ |
300W/㎡ |
360W/㎡ |
380W/㎡ |
Input Voltage |
100-240V |
||||
Cabinet Dimensions |
500x500x85mm & 500*1000*85mm |
||||
Fresh Frequency |
≥1920 HZ |
||||
Cabinet material |
Die-cast Aluminum |
||||
Weight |
7.5KG/12KG |
8KG/14KG |
|||
Grey Grade |
14bit |
||||
Store temperature |
-10 - 30 ℃ |
||||
Working temperature |
-20 - 50 ℃ |
||||
Working Humidity |
35 - 85% |
||||
Store Humidity |
10 - 90% |
